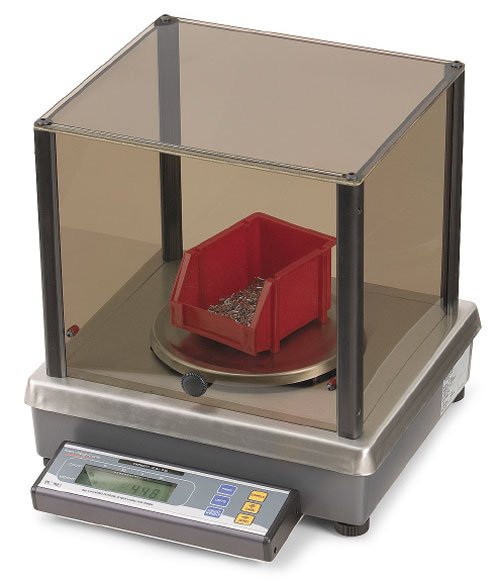

An easy-to-operate, no nonsense counting scale that weighs extremely light parts and reduces the time required to count. The PC-902, using vibrating beam technology provides the highest level of counting accuracy, at an affordable price.
Features and Benefits:
Vibrating Beam Technology: The revolutionary pure digital transducer uses 25 million counts to provide the internal resolution of 2 million. The Q750 Vibrating Beam load cell technology provides:- Higher resolution than traditional analog load cells, with up-to 12,500 divisions type approved
- Equaled counting accuracy as ceramic load cells
- More durability, can withstand the abuse within a warehouse environment
Operator Friendly 6 button Keypad: Simple one-keystroke operation ensures correct use. Three yellow keys draw the operator to the most used keys: ZERO, TARE, and SAMPLE. The SAMPLE key automatically zeroes the scale, prior to the weight being applied.
Internal Resolution: 1:2,000,000
Counting Resolution: 1:25,000, 1:50,000, 1:100,000
Type Approved Resolution:
- 1: 10,000d Class II 10lb, 50lb, 100lb capacities (NTEP pending May 2006)
- 1: 12,500d Class III 25lb capacity (NTEP pending May 2006)
Multiple Count Methods: Bulk, Dribble, Two reverse or negative counting methods
Large Backlit Display: .5” High 7-digit, 7 segment display
PC Interface: Standard, for use with link to bar code guns, label printers, PC’s, or 3rd party shipping software programs

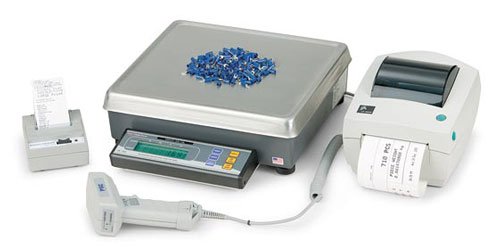

Printer Ready: 3 standard print formats each for use with Zebra LP2844, Dymo Costar, Setra 3 label printers. 8 standard print formats available for use with Avery Weigh-Tronix Dot Matrix printers.
Wallmount Display Bracket: Existing display assembly can be removed from base and mounted onto wall with use of display cable extension from 5’ to 10’.
Options:
Batteries:
- Internal battery with up-to 50 hours continuous use
- External mounted battery with up-to 20 hours of continuous use
- External mount battery charger - charges up to two batteries
Power: 90-264 Universal Power Supply
Draft Shield: Recommended for use on 10lb capacity unit only
Display Post: 9” or 18” display post for remotely mounting of display assembly from 5’ to 10’ away
Product | Description | Pan size | Price |
---|---|---|---|
WET PC902 | 10lb / (5)kg | 8” diameter | 945.25 |
WET PC9021 | 25lb / (12)kg | 12.6'' x 14.08'' | 945.25 |
WET PC9022 | 50lb / (25)kg | 12.6'' x 14.08'' | 945.25 |
WET PC9023 | 100lb / (50)kg | 12.6'' x 14.08'' | 945.25 |
