Just one instrument with so much capacity for work

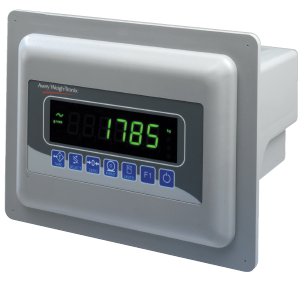

One way to gauge the value of a weighing instrument is to measure its ability to grow and adapt to new processes. The Model E1065 indicator/controller measures up to this challenge by its ability to grow with your needs and switch easily from job to job.
Control and communication
Easy to use in general weighing applications, the Model E1065 combines the capabilities of process control interface and data management.
Uncomplicated, the E1065 provides process control and data management to most standard and custom-configured weighing platforms using bench and floor scales.
With the advantage of the built-in network interfaces (Ethernet 10/100, PROFIBUS and DeviceNet), the indicator/controller is ideally suited for sharing data in tank weighing and truck scale applications.
In addition to offering these interfaces, the E1065 connects to printers, remote displays, computers and SensorComm, the Avery Weigh-Tronix microprocessor-based digital junction box. This connectivity provides unparalleled flexibility to truck scales and batching Weigh Bar systems.
An additional feature is the E1065s bright multi-colored LED display with 0.8" digits, which allows operators to view weights with a quick glance.
Specialized Applications
Checkweighing: The display includes a multi-segment fan graph for fast evaluation so operators can instantly verify that products are within target ranges or above or below acceptable tolerances.
Counting routines: The E1065 can display the number of pieces or average piece weight along with gross, net or tare weights.
Peak weight: If a maximum weight reading is required, the E1065 can capture and display the peak measurement of stable weights.
Process control:
* The indicator is equipped with three setpoint controls to interface with relays for automated mixing or blending operations. Added Performance Features
* The Model E1065 can serve as a remote display in applications where weights must be read in two locations.
* Weight information can be transmitted to peripheral printers and/or computers through the indicators dual communication ports. Information format may be customized and can include time and date.
* An IP54-rated enclosure when panel mounted ensures reliable, continuous operation in dusty environments.
* An optional remote foot control can be added for improved efficiency in common "lift and weigh" applications, giving the operator hand-free control of common scale functions (Zero, Print, Tare, Units or F-1). The optional rack mount kit provides the perfect dimensional fit for those applications.
Power requirements
* 85-265 Volts AC @ 0.3Amp maximum
* 50/60 Hz
Excitation
* +/- 5 volts DC
* Supports up to eight 350-ohm weight sensors
Analog signal input range
* +/-60 mV
Analog signal sensitivity
* 0.2 ýV/V/divisions minimum
* 1.0 ýV/V/divisions recommended
Calibration
* 2 to 5 points stored
Display
* Six-digit, seven-segment, 0.8-inch high, LED
Standard outputs
* 10/100 Ethernet (Modbus/TCP, TCP/IP, SMTP, DHCP, Ethernet/IP)
* PROFIBUS DP
* DeviceNet
* Two serial ports
* RS-232/422/485, SensorComm
* RS-232 or 20mA current loop
* Three cutoff outputs
Options
* Analog output/Pulse input
* ControlNet
* Remote foot control
* Rack mount kit
* Desk stand kit
* TIU3
| Product | Description | Pan size | Price |
|---|---|---|---|
| WET E1065 | E1065 Indicator | 920.00 | |
| WET E10651 | ---------------¬ | ---------¬ | 0.00 |
| WET E10652 | Analog output/Pulse input | Field install kit : 57315-0018 | 260.00 |
| WET E10653 | ControlNet™ kit (Field install | kit: 57315-0026, incl: analog | 990.00 |
| WET E10654 | Remote I/O™ kit (Field install | kit: 57315-0042, incl: analog | 960.00 |
| WET E10655 | TIU3 Trips interface unit | 3 relays, stainless steel encl | 280.00 |
| WET E10656 | Foot switch for remote input | (see below) | 45.00 |
| WET E10657 | Desk mount stand kit | (incl. necessary mtg. hardware | 60.00 |
| WET E10658 | Rack mount plate kit | (incl. necessary mtg. hardware | 60.00 |
| WET E10659 | Cable, 4 ft. length | (E1065-to-PC) | 30.00 |
| WET E106510 | Cable, 3 ft. length | (E1065-to-TIU3) | 10.00 |
| WET E106511 | Cable, 10 ft. length | (E1065-to-TIU3) | 25.00 |
| WET E106512 | Cable, 25 ft. length | (E1065-to-TIU3) | 50.00 |
| WET E106513 | Cable, 50 ft. length | (E1065-to-TIU3) | 90.00 |
