SENTRONIK STAINLESS STEEL AND ALLOY STEEL BEAM FEET CBBF

269

watching

sold in the last hour

$7.50 USD

SKU: SE BEAM FEET CBBF

Return Policy

Returns accepted if product not as described, buyer pays return shipping fee; or keep the product & agree refund with seller. View details

Seller Guarantees:

On-time Delivery 25 days

Payment:

Buyer Protection

Full Refund if you don't receive your order.

Full or Partial Refund , if the item is not as described

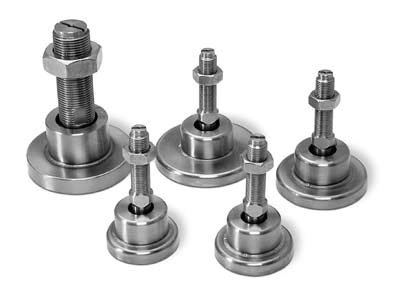

These feet screw into the threaded load hole in single ended beam load cells.
Captive ball bearing foot with 10 deg pivoting and 360 deg rotation.
Rubber Cap - Molded rubber caps for harsh or wet environments.

• Provides outstanding accuracy, repeatability, and performance
• Active ball suspension provides optimum load cell performance
• Hardened stainless steel material, welded, with polished finish
• Includes two stainless steel jam nuts, one for wrench access
• Top of stud is machined undersized 10% for easy alignment into load cell plus slotted for top-access applications

Stainless Steel
CBBF-1/2-20 x 1-7/8-SS	CBBF-1/2-20 x 2-SS	CBBF-1/2-20 x 2-1/2-SS	CBBF-1/2-20 x 3-SS
Static Load Capacity: 2,157 lb Length: 1.562 Bore: 0.250 Shank: 1.000 Dia: 0.750 Width: 0.375	Static Load Capacity: 4,916 lb Length: 1.938 Bore: 0.375 Shank: 1.250 Dia: 1.000 Width: 0.500	Static Load Capacity: 8,075 lb Length: 2.438 Bore: 0.500 Shank: 1.500 Dia: 1.312 Width: 0.625	Static Load Capacity: 9,509 lb Length: 2.625 Bore: 0.625 Shank: 1.625 Dia: 1.500 Width: 0.750
CBBF-3/4-16 x 3-SS	CBBF-1-14 x 3-SS	CBBF-1-12 x 3-SS
Static Load Capacity: 13,831 lb Length: 2.875 Bore: 0.750 Shank: 1.750 Dia: 1.750 Width: 0.875	Static Load Capacity: 43,541 lb Length: 4.125 Bore: 1.000 Shank: 2.125 Dia: 2.750 Width: 1.375	Static Load Capacity: 43,541 lb Length: 4.125 Bore: 1.000 Shank: 2.125 Dia: 2.750 Width: 1.375

Alloy Steel
CBBF-1/2-20 x 1-7/8-AS	CBBF-1/2-20 x 2-AS	CBBF-1/2-20 x 2-1/2-AS	CBBF-1/2-20 x 3-AS
Minimum Height: 1-3/4" Maximum Height: 3" Pad: 1-7/8" dia	Minimum Height: 1-3/4" Maximum Height: 3" Pad: 2" dia	Minimum Height: 1-3/4" Maximum Height: 3" Pad: 2-1/2" dia	Minimum Height: 1-3/4" Maximum Height: 3" Pad: 3" dia
CBBF-3/4-16 x 3-SS	CBBF-1-14 x 3-SS	CBBF-1-12 x 3-SS
Minimum Height: 2-1/2" Maximum Height: 4-1/4" Pad: 3" dia	Minimum Height: 2-1/2" Maximum Height: 4-1/4" Pad: 3" dia	Minimum Height: 2-1/2" Maximum Height: 4-1/4" Pad: 3" dia

Rubber Cap
for 1/2-20 x 1-7/8" & 2" dia	for 1/2-20 x 2-1/2" & 3" dia

Product	Description	Price
SE BEAM FEET CBBF	Stainless Steel	47.00
SE BEAM FEET CBBF1	Stainless Steel	47.00
SE BEAM FEET CBBF2	Stainless Steel	50.00
SE BEAM FEET CBBF3	Stainless Steel	52.00
SE BEAM FEET CBBF4	Stainless Steel	81.00
SE BEAM FEET CBBF5	Stainless Steel	94.00
SE BEAM FEET CBBF6	Stainless Steel	94.00
SE BEAM FEET CBBF7	Alloy Steel	31.00
SE BEAM FEET CBBF8	Alloy Steel	31.00
SE BEAM FEET CBBF9	Alloy Steel	38.00
SE BEAM FEET CBBF10	Alloy Steel	48.00
SE BEAM FEET CBBF11	Alloy Steel	55.00
SE BEAM FEET CBBF12	Alloy Steel	63.00
SE BEAM FEET CBBF13	Alloy Steel	63.00
SE BEAM FEET CBBF14	Rubber Cap	6.60
SE BEAM FEET CBBF15	Rubber Cap	6.60
SE BEAM FEET CBBF16	Rubber Cap	7.50
