SENTRONIK LOAD CELL EYE BOLTS
269
watching
20
sold in the last hour
Sale price
$88.80 USD
SKU: SE EYE BOLTS
Return Policy
Returns accepted if product not as described, buyer pays return shipping fee; or keep the product & agree refund with seller.
View details
Seller Guarantees:
On-time Delivery
25 days
Payment:
Buyer Protection
Full Refund if you don't receive your order.
Full or Partial Refund , if the item is not as described

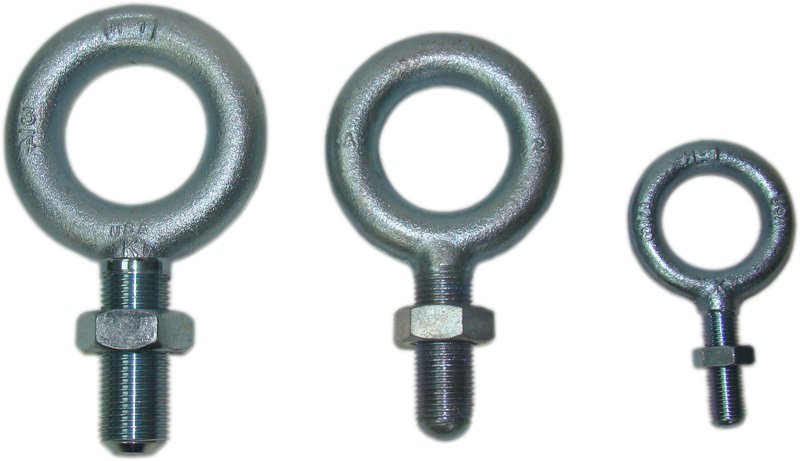

Zinc Plated -
Forged steel. Externally threaded with jam nut. Recommend using a safety factor of 4 to 1.
Stainless Steel -
Forged stainless steel with external threads and stainless steel jam nut. Recommend using a safety factor of 4 to 1.
| Zinc Plated (UNF) Fine Thread
|
||||
1/4-28 |
3/8-24 |
1/2-20 |
5/8-18 |
3/4-16 |
| Overall Length: 2.000 Shank Length: 1.00 Inside Eye: 0.750 Outside Eye: 1.187 Ultimate Strength: 2,500lb |
Overall Length: 2.875 Shank Length: 1.25 Inside Eye: 1.000 Outside Eye: 1.813 Ultimate Strength: 5,200lb |
Overall Length: 3.125 |
Overall Length: 3.687 Shank Length: 1.75 Inside Eye: 1.375 Outside Eye: 2.500 Ultimate Strength: 16,000lb |
Overall Length: 4.063 Shank Length: 2.00 Inside Eye: 1.500 Outside Eye: 2.813 Ultimate Strength: 20,000lb |
|
1-14 |
1-1/4-12 |
1-1/2-12 |
2-12 |
|
| Overall Length: 5.187 Shank Length: 2.50 Inside Eye: 1.813 Outside Eye: 3.562 Ultimate Strength: 36,000lb |
Overall Length: 7.500 Shank Length: 3.00 Inside Eye: 2.187 Outside Eye: 4.438 Ultimate Strength: 75,000lb |
Overall Length: 8.750 Shank Length: 3.50 Inside Eye: 2.500 Outside Eye: 5.187 Ultimate Strength: 105,000lb |
Overall Length: 11.875 Shank Length: 4.00 Inside Eye: 3.250 Outside Eye: 63875 Ultimate Strength: 140,00lb |
|
| (UNC) Coarse Thread
|
|
1/4-20 |
1/2-13 |
| Overall Length: 2.000 Shank Length: 1.00 Inside Eye: 0.750 Outside Eye: 1.187 Ultimate Strength: 2,500lb |
Overall Length: 3.125 Shank Length: 1.50 Inside Eye: 1.187 Outside Eye: 2.000 Ultimate Strength: 12,000lb |
| Stainless Steel (UNF) Fine Thread
|
||
1/4-28 |
1/2-20 |
3/4-16 |
| Overall Length: 2.000 Shank Length: 1.00 Inside Eye: 0.750 Outside Eye: 1.187 Ultimate Strength: 2,500lb |
Overall Length: 3.125 Shank Length: 1.50 Inside Eye: 1.187 Outside Eye: 2.000 Ultimate Strength: 12,000lb |
Overall Length: 4.063 |
| Product | Description | Pan size | Price |
|---|---|---|---|
| SE EYE BOLTS | 1/4-28 Zinc Plated (UNF) | Fine Thread | 6.20 |
| SE EYE BOLTS1 | 3/8-24 Zinc Plated (UNF) | Fine Thread | 8.20 |
| SE EYE BOLTS2 | 1/2-20 Zinc Plated (UNF) | Fine Thread | 9.90 |
| SE EYE BOLTS3 | 5/8-18 Zinc Plated (UNF) | Fine Thread | 12.40 |
| SE EYE BOLTS4 | 3/4-16 Zinc Plated (UNF) | Fine Thread | 18.45 |
| SE EYE BOLTS5 | 1-14 Zinc Plated (UNF) | Fine Thread | 29.70 |
| SE EYE BOLTS6 | 1-1/4-12 Zinc Plated (UNF) | Fine Thread | 94.00 |
| SE EYE BOLTS7 | 1-1/2-12 Zinc Plated (UNF) | Fine Thread | 198.00 |
| SE EYE BOLTS8 | 2-12 Zinc Plated (UNF) | Fine Thread | 310.00 |
| SE EYE BOLTS9 | 1/4-20 (UNC) Coarse Thread | 6.20 | |
| SE EYE BOLTS10 | 1/2-13 (UNC) Coarse Thread | 9.70 | |
| SE EYE BOLTS11 | 1/4-28 Stainless Steel (UNF) | Fine Thread | 36.00 |
| SE EYE BOLTS12 | 1/2-20 Stainless Steel (UNF) | Fine Thread | 37.40 |
| SE EYE BOLTS13 | 3/4-16 Stainless Steel (UNF) | Fine Thread | 88.80 |
