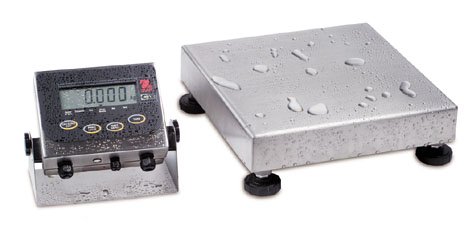

For precise industrial requirements, the Champ® SQ Washdown Bench Scale is just right for your application and budget.
When you need affordable performance, the Champ’s washdown models offer
simple operation, setup and menu navigation. Every Champ® SQ NEMA 4X /
IP65 Washdown Bench Scale comes with an impressive range of features,
including:
- Capacities from 10 kg/25 lb to 250 kg/500 lb
- All stainless steel construction, with a precise, easy-to-use NEMA 4X/IP65 washdown indicator
- RS232 interface standard
- Weigh modes include dynamic animal weighing and parts counting
- AC or battery powered for full portability
- Large backlit LCD display
- Includes stainless steel bench/wall mount bracket
- NTEP 1:5,000 resolution
Models | CQ10R11W | CQ25R11W | CQ50L11W | CQ100L11W | CQ250XL11W |
Capacity (lb/kg) | 25/10 | 50/25 | 100/50 | 250/100 | 500/250 |
Readability (lb) Non type approved (kg) |
0.002 0.001 |
0.005 0.002 |
0.01 0.005 |
0.02 0.01 |
0.05 0.02 |
Readability (lb) Type approved (kg) |
0.005 0.002 |
0.01 0.005 |
0.02 0.01 |
0.05 0.02 |
0.10 0.05 |
NTEP resolution | 1:5,000 | ||||
Platform size (w x d x h) (in) | 12 x 12 x 4 | 18 x 18 x 4.1 | 24 x 24 x 6.4 | ||
Platform size (w x d x h) (cm) | 30 x 30 x 10 | 45 x 45 x 10.4 | 60 x 60 x 16 | ||
Weight (scale unit) (lbs) | 20 | 51 | 76 | ||
Safe overload capacity | 150% | ||||
Stabilization time | 1 - 4 seconds depending upon filter selection | ||||
Keyboard | 4-function membrane switches | ||||
Weighing units | lb, kg, g, oz | ||||
Weighing modes | Weighing, parts counting and dynamic weighing | ||||
Display | 25.4mm, backlit 1-inch LCD | ||||
Power (AC)/(DC) | AC hard-wired cord set, 120V, 6 C-type batteries (not included); up to 100 hours of operation. The suffix to the Ohaus bench scales model denotes the indicator used. The CD11 & CD11W operator on AC Power or Battery, while CD31 & CD33 will run on AC Adapter only. So the CQ10R11W with operate on either AC or battery while the CQ10R31 and CQ10R33 will run on AC Adapter only. |
||||
Repeatability | NTEP 5000d | ||||
Frame & Platform construction | Stainless steel | ||||
Protection | NEMA 4X / IP65 | ||||
Operating temperature | 14° F to 104° F / -10° C to 40° C, 10% to 95% relative humidity | ||||
Storage temperature | -4° F to 140° F / -20° C to 60° C, 10% to 95% relative humidity |
![ohaus champ sq bench scale data sheet](files/master/pdf/z_logo_pdf.gif)
Product | Description | Pan size | Price |
---|---|---|---|
OHA CQ RW | 25lb x 0.002lb / 10kg x 0.001k | 12 x 12 x 4 in | 1025.00 |
OHA CQ11 | 50lb x 0.005lb / 25kg x 0.002 | 12 x 12 x 4 in | 1025.00 |
OHA CQ22 | 100lb x 0.01lb / 50kg x 0.005 | 18 x 18 x 4.1 in | 1340.00 |
OHA CQ32 | 250lb x 0.02lb / 100kg x 0.01 | 18 x 18 x 4.1 in | 1340.00 |
OHA CQ42 | 500lb x 0.05lb / 250kg x 0.02 | 24 x 24 x 6.4 | 1797.00 |
