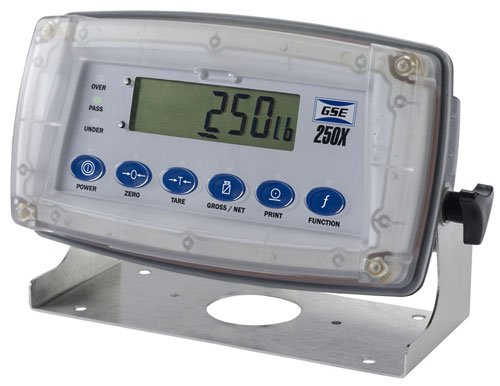

The Model 250X Digital Indicator meets your extreme needs
for equipment that can handle high pressure and high temperature cleaning with water and solvents.
Product Release
• Rated IP69K for High Temp, High Pressure Washdown
• Food-Grade, High Impact Plastic Enclosure
• Built-in Checkweighing Functionality
• Wet Foods Processing, Meat Packing Applications
New Washdown IP69K Instrument
Model 250X Indicator from GSE
3 power versions are available:
AC, DC with Battery Charger, and DC input.
Extreme conditions demand equipment that not only survives but thrives in harsh environments. The Model 250X is IP69K, the highest rated level of washdown protection in the industry. During high pressure (1450 psi), high temperature (80 °C / 176 °F) cleaning with solvents, Model 250X prevents water ingression which IP68 rated equipment can’t endure.
The 250X hosts all the capabilities of a general purpose indicator, and features a 6-digit LCD backlit display and a cut-proof, 6-key capacitive keypad with programmable function key. The keypad holds a visual response upon key activation. Bright red, green, and yellow status lights provide Over, Pass, and Under protection for check weighing applications.
3 power versions are available:
AC, DC with Battery Charger, and DC input.
Exceptional Enclosure Design
The Model 250X enclosure is constructed from a unique blend of high impact plastics designed to meet food-grade specifi cations. This progressive material is preferred over
stainless steel because it will not form condensation, or expand or contract when exposed to extreme shifts in temperature.
The indicator is impervious to water ingression due to its innovative double o-ring seal. The fascia is a single continuous piece, preventing any moisture from entering in through the keypad.
stainless steel because it will not form condensation, or expand or contract when exposed to extreme shifts in temperature.
The indicator is impervious to water ingression due to its innovative double o-ring seal. The fascia is a single continuous piece, preventing any moisture from entering in through the keypad.
|
Performance
|
|
|
Resolution
|
Up to 30,000 divisions, minimum of 0.25 ¼V/division, 20 updates/second (Trade 4000 divisions at 0.8 ¼V/division)
|
|
Zero Cancellation
|
± 2.0 mV/V
|
|
Span Adjustment
|
0.1 mV/V to 3.0 mV/V full scale
|
|
Stability / Drift
|
Zero: < 0.1¼V/¼C (+ 8ppm of deadload max)
|
|
Excitation
|
5 volts for up to 4 x 350 or 8 x 700 ohm load cells (4 or 6 wire plus shield). Maximum load cell resistance is 1000 ohms
|
|
A/D Type
|
24 bit Sigma Delta with ± 8,388,608 internal counts
|
|
A/D Conversion Rate
|
20Hz with FIR filtering > 80db
|
|
Operation Environment
|
Temperature: 14 °F to 122 °F ambient (-10 °C to 50 °C)
|
|
Humidity: 100%
|
|
|
Storage: -4 °F to 122 °F ambient (-20 °C to 50 °C)
|
|
|
IP69K Rated
|
|
|
Setup and Calibration
|
Full digital with visual prompting
|
|
Digital Filter
|
0.1 to 4.0 seconds
|
|
Zero Range
|
Adjustable from 2% to 20% of full capacity
|
|
Electrical
|
|
|
AC
|
100 – 240 VAC 50/60 MHz
|
|
DC
|
12 VDC rechargeable NiMH (optional) battery pack
|
|
Enclosure
|
|
|
Material
|
Food-grade plastic, SS304 stand
|
|
Mounting
|
Desk, wall, column
|
|
Dimensions
|
Desk: 9.8" (249 mm) x 6.4" (163 mm) x 4.7" (119 mm)
|
|
Features
|
|
|
Display
|
LED backlit LCD with six 0.8" digits with 8 annunciators including units
|
|
Keypad
|
6-key capacitive; audible tone and light indication
|
|
Front Panel
|
Bright red, green, yellow Over, Pass, Under indication lights
|
|
GSE Link
|
Infra-red connector for optional GSE-Link PC cable (to RS232 PC port)
|
|
RS-232 Communication
|
RS232 automatic transmit, network or printer outputs. Transmission rate: 2400, 4800, or 9600 baud
|
|
Setpoints
|
3 isolated high side drive outputs (400mA each at 12–24 VDC)
|
|
Function Key
|
Unit switching, counting, manual hold, peak hold, live weight, and accumulation
|
|
Battery Backed Time/Date
|
Battery life 10 years minimum
|
|
Linearization
|
10 point linearity correction
|
|
Approvals
|
CE Approved, NTEP Pending
|
|
Shipping Weight
|
4.4 lb
|
| Product | Description | Pan size | Price |
|---|---|---|---|
| GSE 250X | includes AC Power Supply, | 90-240 VAC | 0.00 |
| GSE 250X1 | includes DC Power Supply | Battery Operation with Charger | 0.00 |
| GSE 250X2 | Indicator, DC input only | 0.00 | |
| GSE 250X OPTION | ----------------------- | ----------- | 0.00 |
| GSE 250X4 | Column Mount Swivel Bracket | 0.00 | |
| GSE 250X5 | GSE-Link IR Communication | Cable, RS232 port | 0.00 |
| GSE 250X6 | GSE-Link IR Communication | Cable, USB port | 0.00 |
| GSE 250X7 | AC, USA Power Supply Adapter | 0.00 | |
| GSE 250X8 | Battery Module, w/ white molde | housing & connection leads | 0.00 |
| GSE 250X9 | Battery Charger, wall mount | 0.00 | |
| GSE 250X10 | User's Guide, Included with | indicator | 0.00 |
| GSE 250X11 | Quick Start Manual, Included | with indicator | 0.00 |
| GSE 250X12 | Technical Reference Manual | 0.00 |
