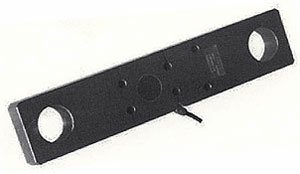

AMCELLS CSL CRANE SCALE LOAD CELL (12Klb to 100Klb)
269
watching
20
sold in the last hour
Sale price
$1887.00 USD
SKU: AMC CSL
Return Policy
Returns accepted if product not as described, buyer pays return shipping fee; or keep the product & agree refund with seller.
View details
Seller Guarantees:
On-time Delivery
25 days
Payment:
Buyer Protection
Full Refund if you don't receive your order.
Full or Partial Refund , if the item is not as described
• Crane Scale Load Cell
• High Grade Alloy Steel
• Design for Shackles Usage
• Meets OIML and HB44 III Standards
| Capacities | 12K, 30K, 40K, 50Kse, 50K, 75K, 100K, 150K, 200K, 250K, 300K and 400K lb | |
| Rated Output (R.O.) | 2.0 MV/V ± 1% | |
| Zero Balance | ± 2% of R.O. | |
| Non-Linearity | 0.03% of R.O. | |
| Hysteresis | 0.02% of R.O. | |
| Non-Repeatability | 0.05% of R.O. | |
| Creep (1 hour) | 0.05% of Load | |
| Insulation | > 5,000M Ohm | |
| Input Impedance | 380 ± 30 Ohm | |
| Output Impedance | 350 ± 4 Ohm | |
| Safe Overload | 150% F.S. | |
| Ultimate Overload | 300% F.S. | |
| Compensated Temperature Range | -10Ú to 40Ú C | |
| Operating Temperature Range | -40Ú to 80Ú C | |
| Temperature Effect on Output | 40 ppm/ÚC of Load | |
| Temperature Effect on Zero | 40 ppm/ÚC of R.O. | |
| Recommended Excitation | 10V DC/AC | |
| Maximum Excitation | 20V DC/AC | |
| CAPACITY (lb) | A | B | C | D | E | F | G | H | J | |
| 12K | 7.75 | 1.75 | 1.00 | 0.875 | 6.00 | 3.875 | 0.875 | 0.00 | 0.00 | |
| 30K | 9.04 | 3.04 | 1.00 | 1.52 | 6.00 | 4.52 | 1.52 | 0.00 | 0.00 | |
| 40K/50Kse | 9.04 | 3.04 | 1.45 | 1.52 | 6.00 | 4.52 | 1.52 | 0.00 | 0.00 | |
| 50K | 18.10 | 3.60 | 1.50 | 2.02 | 14.511 | 8.00 | 1.80 | 4.625 | 7/ 16 | |
| 75K/100K | 21.215 | 4.50 | 1.50 | 2.81 | 16.815 | 9.15 | 2.20 | 5.50 | 7/ 16 | |
| 150K | 23.00 | 5.50 | 2.13 | 3.31 | 17.00 | 10.20 | 3.00 | 5.70 | 7/ 16 | |
| 200K | 24.50 | 6.50 | 2.36 | 3.81 | 17.42 | 11.20 | 3.54 | 6.50 | 7/ 16 | |
| 250K | 29.77 | 7.50 | 2.50 | 3.81 | 20.87 | 14.95 | 4.45 | 6.75 | 7/ 16 | |
| 300K | 31.75 | 7.50 | 2.50 | 4.31 | 22.75 | 15.25 | 4.50 | 7.75 | 7/ 16 | |
| 400K | 34.00 | 8.80 | 3.00 | 4.80 | 22.80 | 17.00 | 5.60 | 5.50 | 7/ 16 | |
|
COLOR CODE : Red + Excitation; Green + Signal; Black - Excitation; White - Signal CABLE LENGTH : 15 feet |
||||||||||
| Product | Description | Pan size | Price |
|---|---|---|---|
| AMC CSL | 12K lb | 807.00 | |
| AMC CSL1 | 30K lb | 1077.00 | |
| AMC CSL2 | 40K lb | 1077.00 | |
| AMC CSL3 | 50Kse lb | 1077.00 | |
| AMC CSL4 | 50K lb | 1617.00 | |
| AMC CSL5 | 75K lb | 1887.00 | |
| AMC CSL6 | 100K lb | 1887.00 |
